Physics Exam Past Questions and Answers | JAMB, WAEC and NECO

Physics is the science that studies the nature and properties of matter and energy. It covers topics like motion, heat, light, sound, electricity, magnetism, and the structure of atoms.

• Question 2391: The charge carriers in gasses are Options:
  A) ions only
  B) electrons and ions
  C) electrons and holes
  D) electrons only
  Show Answer
  The correct answer is A .
• Question 2392: Which of the following pairs of musical instruments produce sound due to the vibration of air column? Options:
  A) Bell and piano
  B) Guitar and flute
  C) Trumpet and drum
  D) Trumpet and flute
  E) Violin and organ
  Show Answer
  The correct answer is D .
• Question 2393: The relative densities of zinc, brass, copper, gold and silver are respectively 7.1, 8.5, 8.9, 19.3, 10.5. A metal ornament which weighs 0.425kg and can displace 50 x 10^-6m³m of water is made of Options:
  A) zinc
  B) brass
  C) copper
  D) gold
  E) silver
  Show Answer
  The correct answer is B .
• Question 2394: A bullet fired at a wooden block of thickness 0.15m manages to penetrate the block. If the mass of the bullet is 0.025kg and the average resisting force of the wood is 7.5 x 10³N, calculate the speed of the bullet just before it hits the wooden block. Options:
  A) 450ms^-1
  B) 400ms^-1
  C) 300ms^-1
  D) 250ms^-1
  Show Answer
  The correct answer is C .
• Question 2395: A reservoir 500 m deep is filled with a fluid of density 850 kgm^-3. If the atmospheric pressure is 1.05 x 10⁵ Nm^-2, the pressure at the bottom of the reservoir is.
  [g = 10ms^-2] Options:
  A) 4.72 x 10⁶ Nm^-2
  B) 4.36 x 10⁶ Nm^-2
  C) 4.28 x 10⁶ Nm^-2
  D) 4.25 x 10⁶ Nm^-2
  Show Answer
  The correct answer is D .
• Question 2396: A current of 0.5 A flowing 3h Deposits 2g of metal during electrolysis. The quantity of the same metal that would be deposited by the currents of 1.5A flowing in 1h is Options:
  A) 2g
  B) 6g
  C) 10g
  D) 18g
  Show Answer
  The correct answer is A .
• Question 2397:


  A block of mass 0.5 kg is suspended at the 40 cm mark of a light metre rule AB that is pivoted at point E, the 90 cm mark, and is kept at equilibrium by a string attached at point D, the 60 cm mark, as shown in the figure above. Find the tension T in the string.

  [Take g = $10ms-2$ ]

  Options:
  A) 16.67N
  B) 15.67N
  C) 14.67N
  D) 18.67N
  Show Answer
  The correct answer is A .
• Question 2398: The battery connection that permits current to flow across a p-n junction is called? Options:
  A) reverse baised
  B) forward baised
  C) amplification.
  D) rectification
  Show Answer
  The correct answer is B .
• Question 2399:

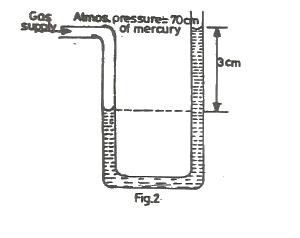

  The water manometer above is measuring the pressure of gas supply. if the specific gravity of mercury is 13.6 and the atmospheric pressure is 70cm of mercury what is the total pressure of the gas supply in cm of water

  Options:
  A) 67cm
  B) 73cm
  C) 949cm
  D) 952cm
  E) 955cm
  Show Answer
  The correct answer is E .
• Question 2400:

  The velocities of light in air and glass are 3.0 x 10${}^8$ms${}^{-1}$ and 2.0 x 10${}^8$ms${}^{-1}$ respectively. If the angle of refraction is 30º, the sine of the angle of incidence is?

  Options:
  A) 0.33
  B) 0.50
  C) 0.67
  D) 0.75
  Show Answer
  The correct answer is D .
