Physics is the science that studies the nature and properties of matter and energy. It covers topics like motion, heat, light, sound, electricity, magnetism, and the structure of atoms.

• Question 1561: A machine is used to lift a load of 20 N through a height of 10 m. if the efficiency of the machine is 40%, how much work is done? Options:
  A) 80 J
  B) 500 J
  C) 300 J
  D) 120 J
  Show Answer
  The correct answer is B .
• Question 1562:



  In the circuit diagram above , the ammeter reads a current of 3A when R is 5Ω and 6A when R is 2Ω. Determine the value of x.

  Options:
  A) 8Ω
  B) 2Ω
  C) 10Ω
  D) 4Ω
  Show Answer
  The correct answer is C .
• Question 1563:

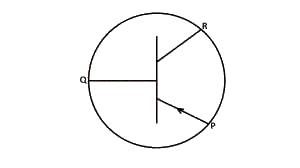

  In the circuit diagram of a transistor above, the terminal P, Q and R represent

  Options:
  A) EMITTER, BASE and COLLECTOR
  B) COLLECTOR, EMITTER and BASE
  C) BASE, COLLECTOR and EMITTER
  D) BASE, ENITTER and COLLECTOR
  Show Answer
  The correct answer is A .
• Question 1564: The maximum permissible current through a galvanometer G of internal resistance 10$\mathrm{\Omega }$ is 0.05A. A resistance R is used to convert G into a voltmeter with a maximum reading of 100V. Find the value of R and how it is connected to G Options:
  A) 20,000 ohms in parallel
  B) 19,990 ohms in series
  C) 1990 ohms in series
  D) 100 ohms in series
  Show Answer
  The correct answer is C .
• Question 1565:

  A quantity of ice at -10°C is heated until the temperature of the heating vessel is 90°C. Which of the following constants is NOT required to determine the quantity of heat supplied to the vessel?

  Options:
  A) Specific latent heat of vaporization
  B) Specific heat capacity of ice
  C) Specific latent heat of fusion
  D) Specific heat capacity of water
  Show Answer
  The correct answer is A .
• Question 1566:

  Which of the following does NOT describe the Image formed by a plane minor?

  Options:
  A) Erect
  B) Laterally inverted
  C) Same distance from mirror as object
  D) Magnified
  Show Answer
  The correct answer is D .
• Question 1567:

  Which of the following characteristics of a wave is used in the measurement of the depth of the Sea?

  Options:
  A) diffraction
  B) interference
  C) refraction
  D) reflection
  Show Answer
  The correct answer is D .
• Question 1568:



  The diagram above shows a velocity time graph representing the motion of a car. Find the total distance covered during the acceleration and retardation of the motion

  Options:
  A) 75m
  B) 150m
  C) 300m
  D) 375m
  Show Answer
  The correct answer is A .
• Question 1569: The production of pure spectrum could easily be achieved using a? Options:
  A) glass prism with a pin
  B) triangular prism with two convex lens
  C) traingular prism only
  D) triangular prism with two concave lenses
  Show Answer
  The correct answer is B .
• Question 1570: Which of the following statements about wave motion is correct? Options:
  A) Electromagnetic waves are transverse
  B) Transverse waves do not require a medium for propagation
  C) Longitudinal waves vibrate perpendicular to the direction of travel
  D) All mechanical waves are longitudinal
  Show Answer
  The correct answer is A .
